SPF-F-36-30 BMS

Specification

Features:

  1. With a communication port for SMBus interface via USB tool bridge to PC to gather battery information, helpful for engineering or R&M services.
  2. Monitoring battery SoC and SoH, such as amperes, volts, capacity; temperature, protection status and cell balance, cycle life times, event records etc.
  3. With circuitry of blocking back electromotive forces(BEMF), and filter circuitry against noises or interference.
  4. Smart two-way cell balance design for both in charging and in quiescence.
  5. LED display to show battery capacity, based on Coulomb Counter and, to show protection occurrences.

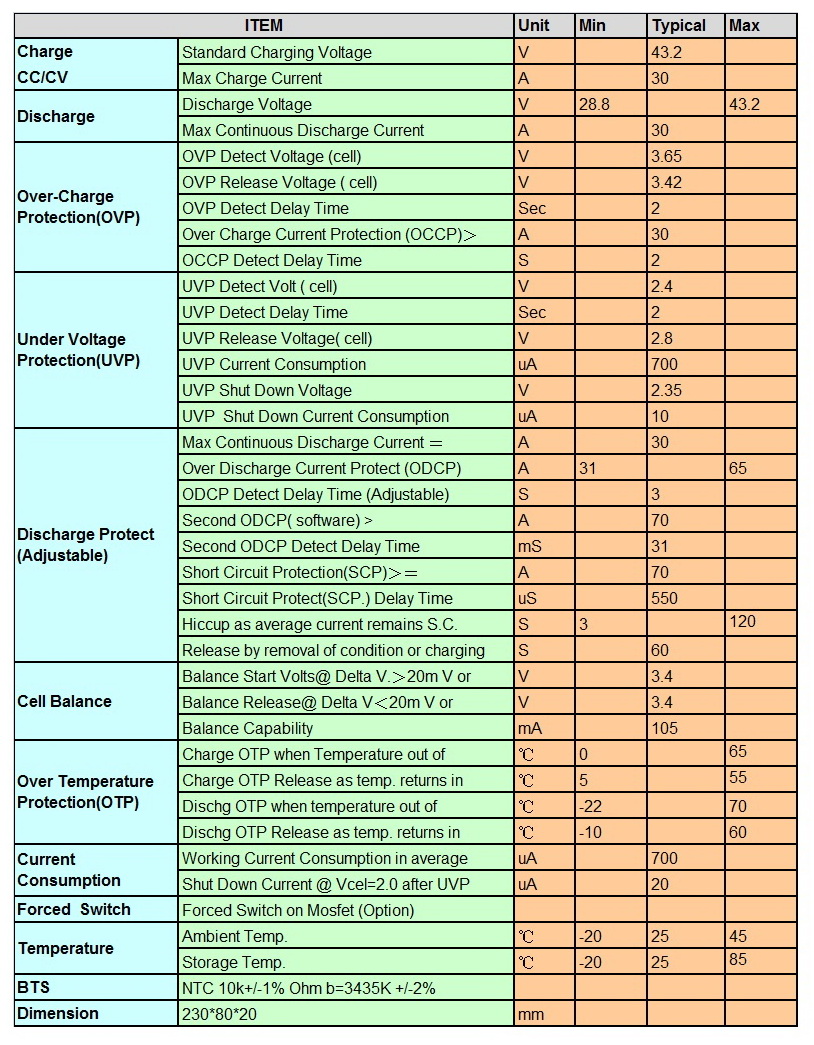

Specification:



LED Indicators (Option)

Battery SoC.

Event warnings: for OVP/OCP/OTP/Short-circuit(via SMBus interface, Option)





Smart battery management of SMBus via USB bridge tool to PC.





Dimension:







Wiring Diagram:
