SPF-F-48-120 BMS



 <1>. Feature

  1. With a communication port for SMBus interface via USB tool bridge to PC to gather battery information, helpful for engineering or R&M services.
  1. Monitoring battery SoC and SoH, such as amperes, cell volts, battery capacity; temperature, protection status and cell balance, cycle life times.
  1. With circuitry of conducting back electromotive forces(BEMF), and filter circuitry against noises or interference.
  1. Smart balance design for both in charging and in quiescence.
  1. LED display to show battery capacity, based on Coulomb Count and when discharging or charging.

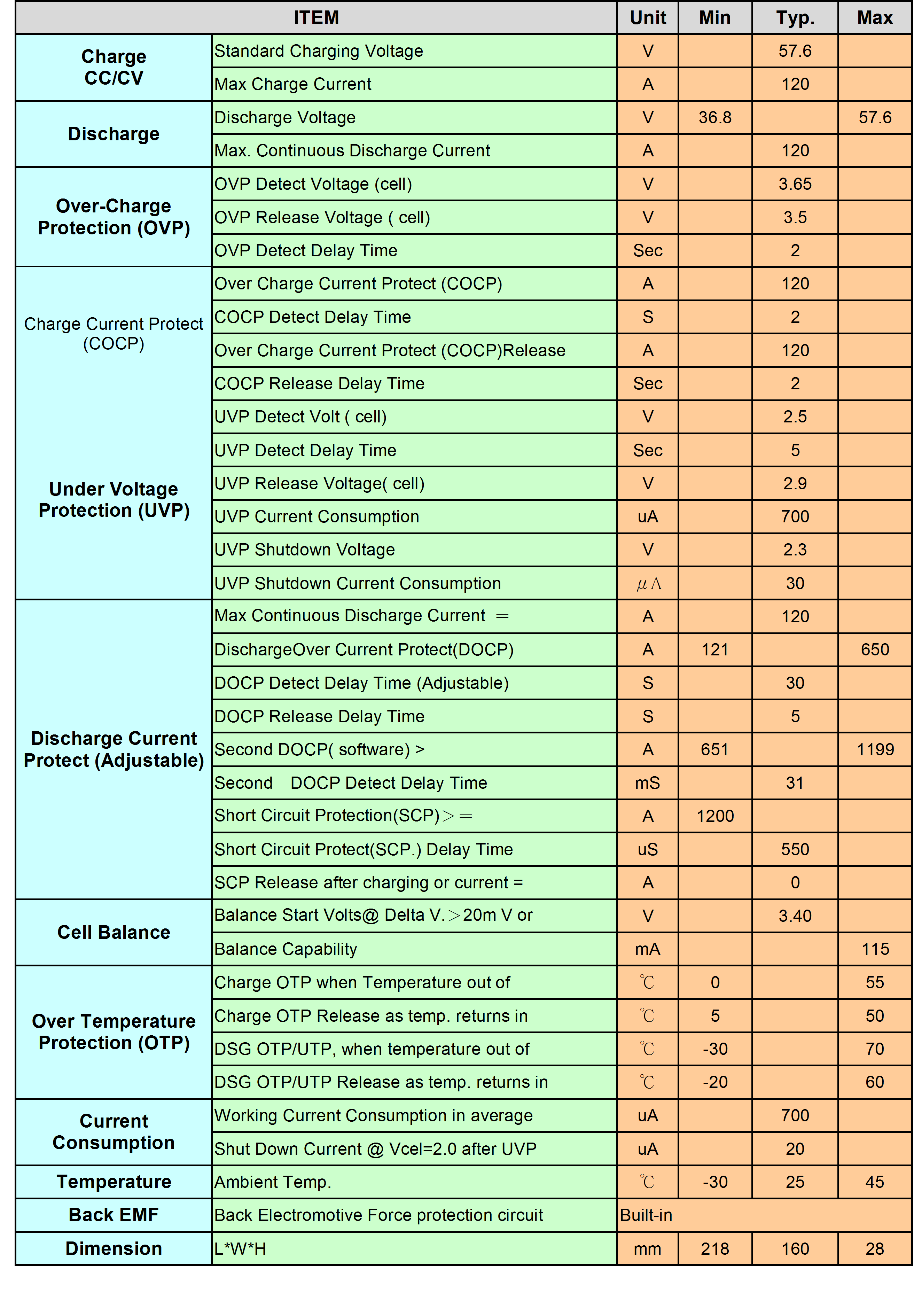

<2>.Key Specifications
