Features:
- With a communication port for SMBus interface via USB tool bridge to PC to gather battery information, helpful for engineering or R&M services.
- Monitoring battery SoC and SoH, such as amperes, cell volts, battery capacity; temperature, protection status and cell balance, cycle life times.
- With circuitry of conducting back electromotive forces(BEMF), and filter circuitry against noises or interference.
- Smart balance design for both in charging and in quiescence.
- LED display to show battery capacity, based on Coulomb Count and when discharging or charging.

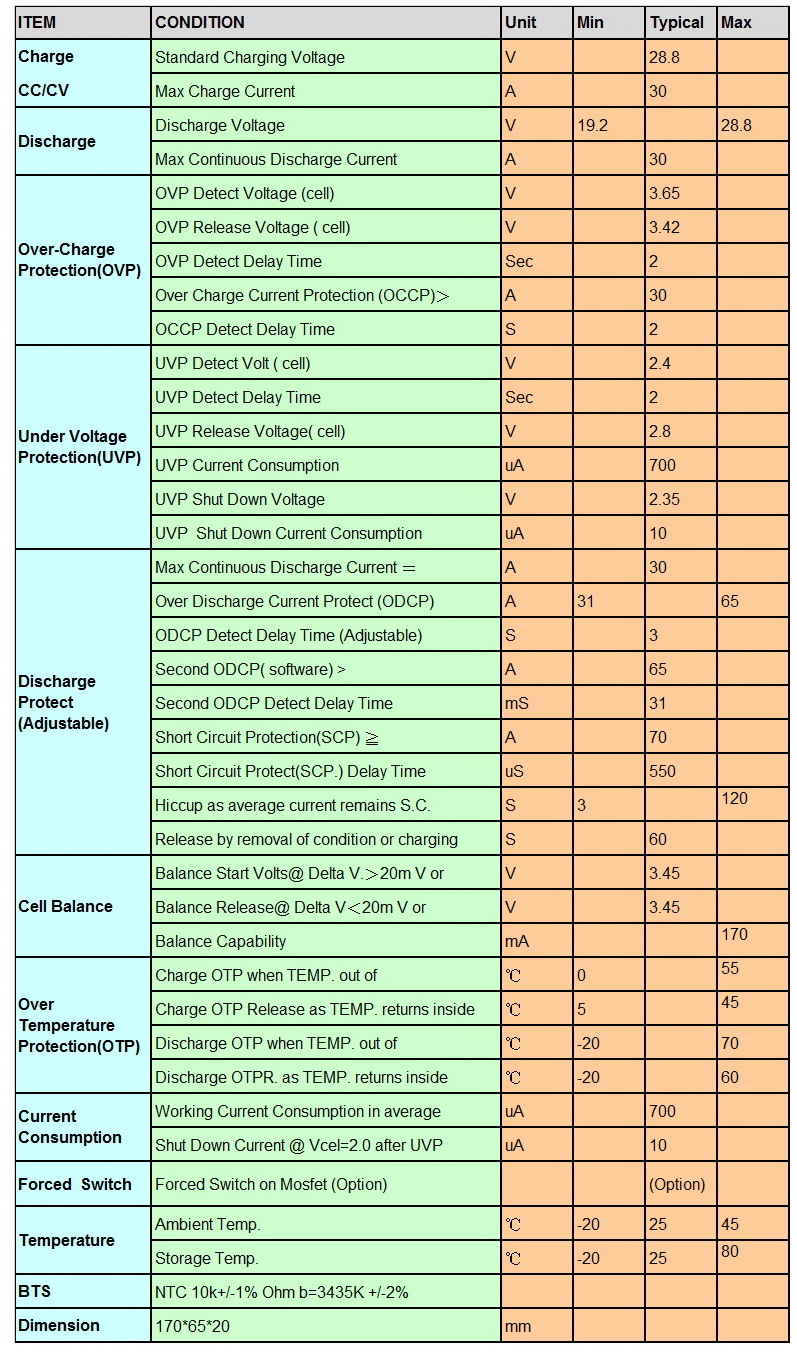

Specification:
LED Indicators for battery SoC. (Optioni)

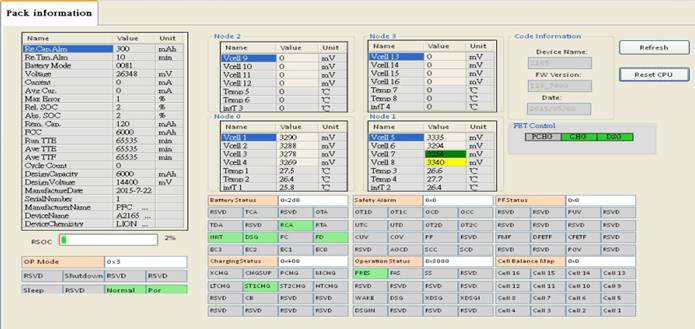

Smart battery management of SMBus via USB bridge tool to PC.

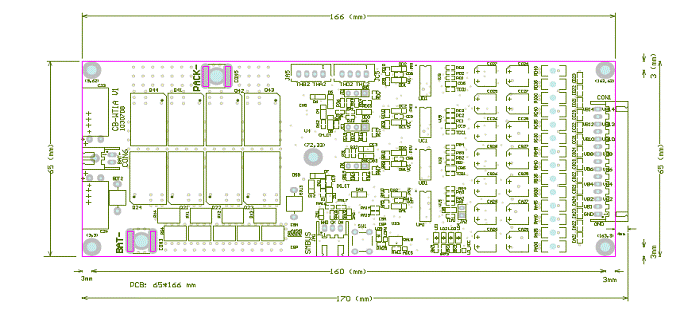

Dimension:
Wiring Diagram:
